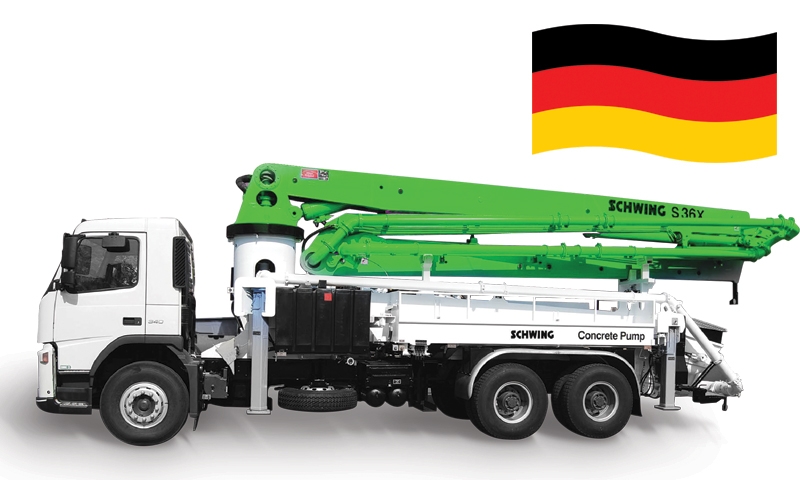

Perfection. Beyond Comparison: Schwing S36 X and S43 Sx Truck Mounted Concrete Pump

• 5 May 2018
• Uncategorized
• 4777 Views

WORLD CLASS GERMAN ENGINEERING

SCHWING Pump uses Rock Valve Technology which is engineered by SCHWING R&D & patented after extensive studies of behaviour of tough concrete in various countries. The state-of-the-art Rock Valve Technology combines with the open hydraulic circuit and the SCHWING “High Flow” spool block ensures minimum heat is generated in hydraulics, therefore negligible output losses occur and there is minimum stress in hydraulic components resulting in lesser maintenance cost in long run. The Vector Control (Patent by SCHWING) using this unique system operator can communicate with this machines, check operation data and collect machine state data in real time. The radio remote control with its intuitive keys and warning systems helps operators to quickly learn to operate the pump. Optional features such as the one-sided stabilising system “EASY”, the concrete stop valve at the end hose and the automatic lighting system are also available.

Incorporated in June 1998, and commencing manufacturing operations in 1999, SCHWING Stetter India, is a 100% subsidiary of the Schwing GMBH, Germany.

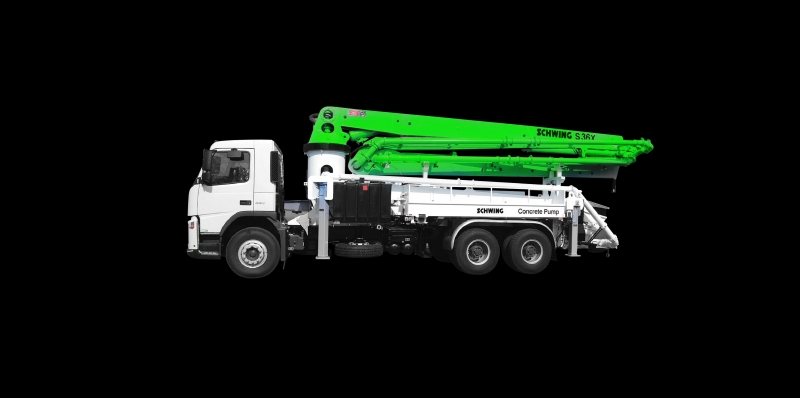

S36X Special Features:

Fuel efficient, lowest wear & tear cost and long service life
Long stroke pumping cylinders
Slewing Ring provides 540’ rotation of the Boom
4-section “Roll and Fold” system, height 36m, all-purpose application.
The X -H stabilizing system, supporting the width of only 6.21m.
A unique design of the SCHWING super X outrigger offers more space for storage of accessories.

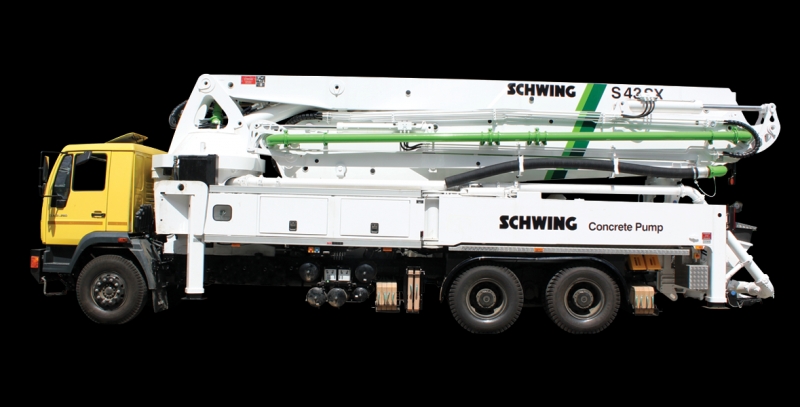

S43SX Special Features:

Schwing RZ boom design combines the “Roll and Fold” boom with a Z-fold boom at the tip to offer 270-degree        flexibility at the last boom section.
Shooting concrete up to 42.3m vertically, and 38.1m horizontally.
It has an unfolding height of 8.7m for those low overhead situations.
Slewing range of 370 degrees to suit many job site requirements.
It requires an 8.3m outrigger spread (the spread is the same, front and rear) for maximum stability.

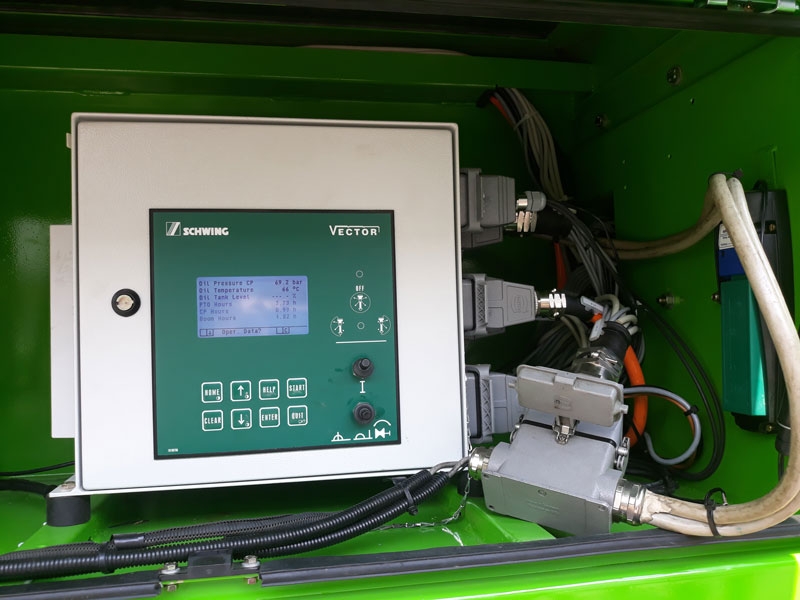

SCHWING VECTOR Control System in Truck Mounted Concrete Pump
